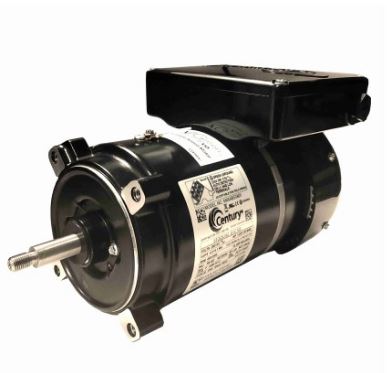

Century VGreen Variable Speed Motors Pool Pump Motor 1.65/1.50 HP, 1 Ph, 50/60 Hz 230/115 56J Frame, TEFC

0 reviews / Write a review

$574.00

Product Code: EVC165

Qty

Product Code	EVC165
HP	1.65 HP
Voltage	115 / 230v

Meets state efficiency standards for swimming pool replacement motors.
Easy communication with most pool automation systems.
Simplified user interface.
Direct -in replacement motor.
Higher efficiency, lower operating costs.

Phase:	1	Output HP:	1.65/1.50 Hp
Output KW:	1.2 kW	Voltage:	230/115 V
Speed:	600-3450 rpm	Service Factor:	1.00
Frame:	48Y	Enclosure:	Totally Enclosed Fan Cooled
Thermal Protection:	Automatic	Ambient Temperature:	50 °C
Frequency:	50//60 Hz	Current:	10.5/17.7 MAX A
Duty:	Continuous	Insulation Class:	F
UL:	Recognized	CSA:	N
CE:	Y	Number of Speeds:	VAR

Technical Specifications

Electrical Type:	Permanent Magnet Motor	Starting Method:	Inverter Duty
Poles:	2	Rotation:	Clockwise Lead End
Mounting:	Round	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Rolled Steel
Shaft Type:	Threaded	Frame Length:	8.68 in
Shaft Diameter:	0.625 in	Shaft Extension:	1/2-20 THREAD in

Standard VGreen Motors (VGreen 085, VGreen 165): Covered for 18 months from the date of installation or 24 months from the date of manufacture, whichever comes first, against defects in materials and workmanship.

Crucial Conditions to Keep in Mind

Avoid Water Damage: The warranty will be instantly voided if the motor failed due to water entry, which is usually caused by a leaking pump shaft seal. Always buy and install a new shaft seal when replacing a motor.

Operation Manual (Clilck Here)
